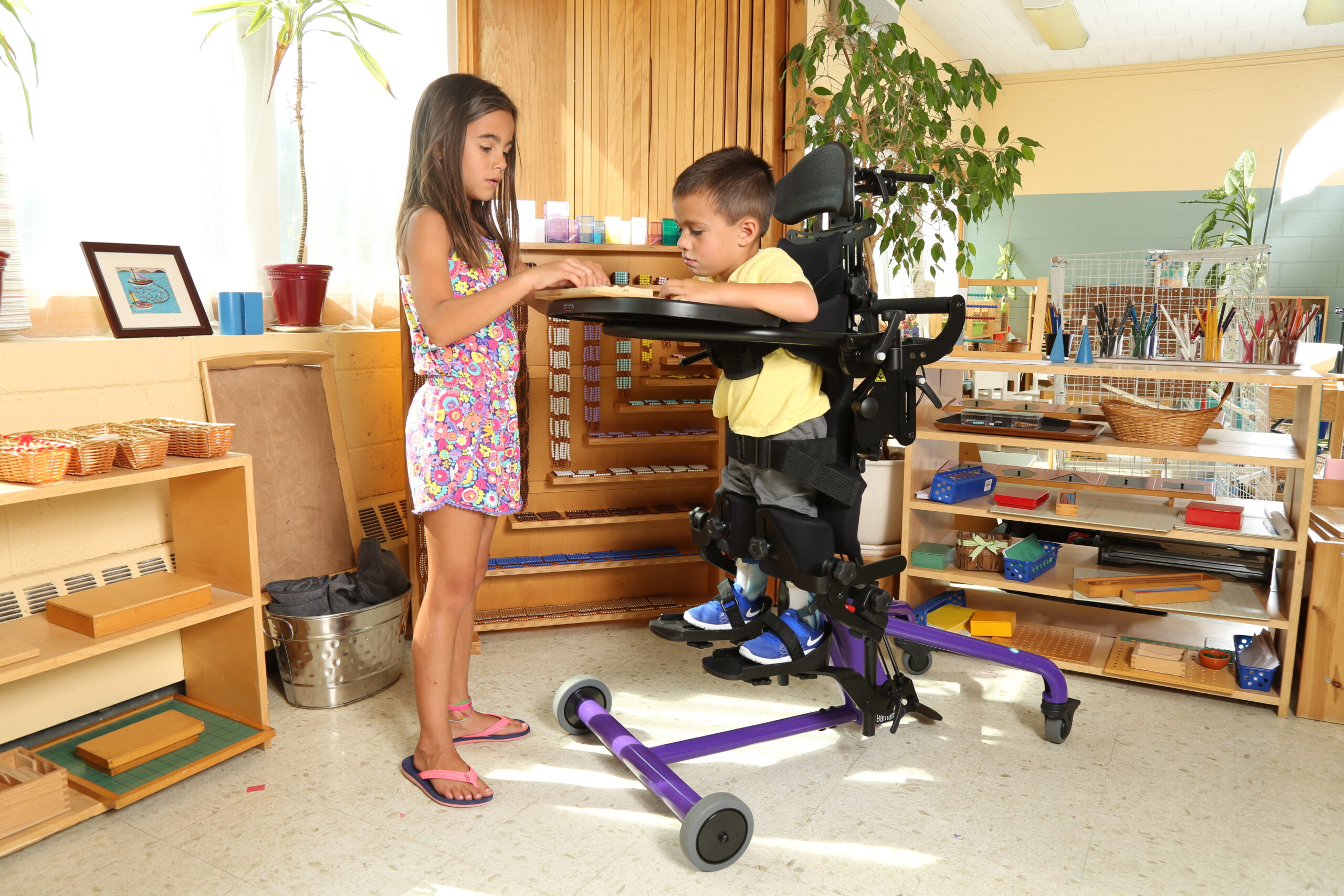

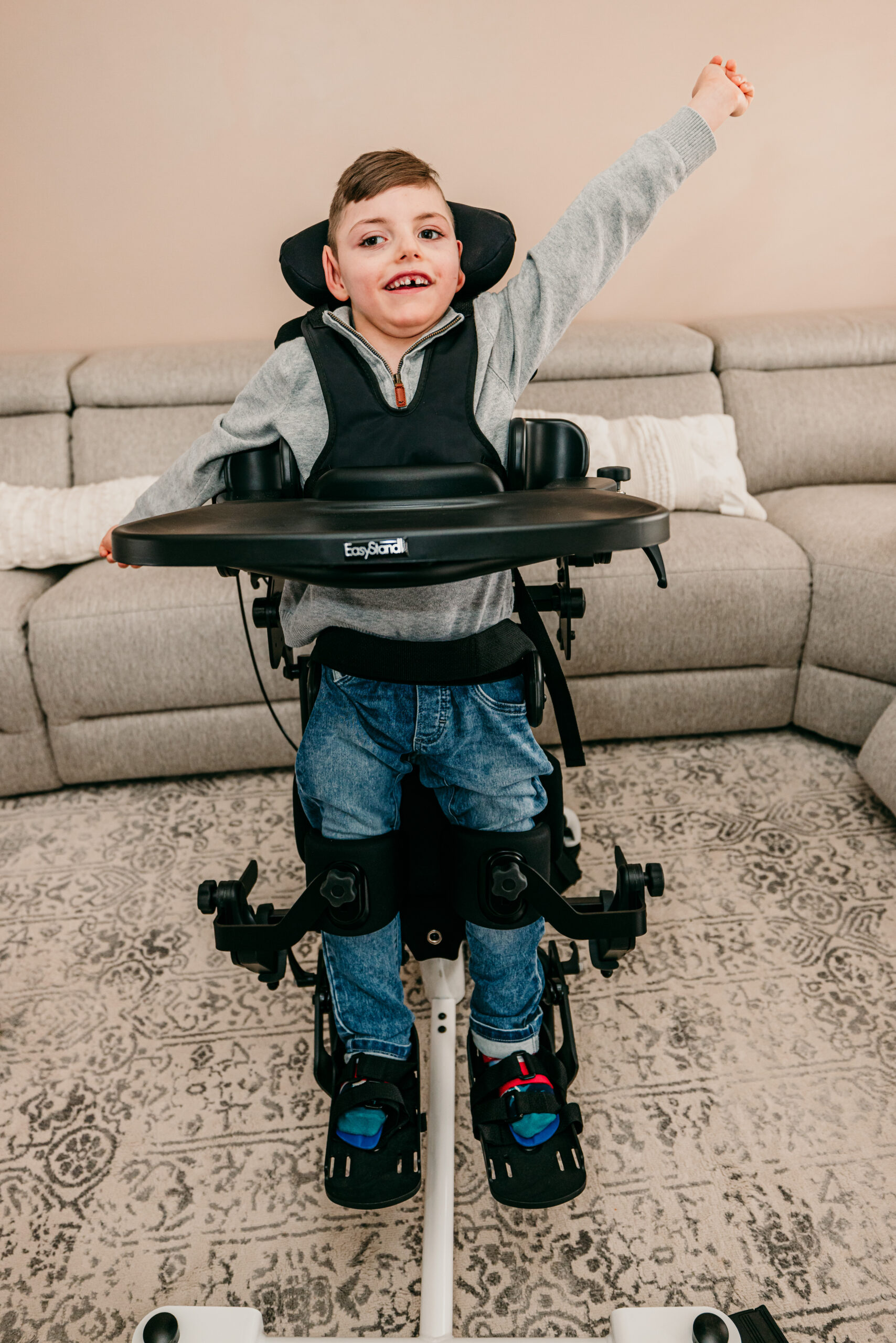

EasyStand Bantam Stander
Call for Price
The EasyStand Bantam is the only standing frame to combine a sit-to-stand transition with the added function of an supine stander. By alternating positions, a child can tolerate standing for a longer period of time. Also, when it is safer and easier for a caregiver to transfer and stand a child, the child will stand more often, increasing standing compliance. The Bantam fits kids from early intervention through elementary school.
Description
Approximate Height Range: 36”- 54” tall and up to 100 lbs.
Seat Depth Range (from seat pivot) 11″-16″
The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.
Base Unit
| Approximate Height Range | 36″-54″ | 91-137cm | |
| Weight Limit | 100lbs | 45kg | |
| Seat Depth Range (from seat pivot to back surface) | 11″-16″ | 28-41cm | |
| Seat Height From Floor (transfer height) | 19″ | 48cm | |
| Seat to Footplate Range (from front of seat) | 10″-16.5″ | 25-42cm | |
| Seat to Footplate Range – Inverted Brackets | 4.5″-11″ | 11-28cm | |
| Kneepad Depth Range (from front of seat) | 2.5″-8.5″ | 6-22cm | |
| Kneepad Width | 5.5″ | 14cm | |
| Back Height From Seat, Planar | 14″-16″ | 36-41cm | |
| Weight of Basic Unit | 54lbs | 24.5kg | |
| Frame Footprint – Standard | 24.5″x36.5″ | 62x93cm | |
| Upholstery | Black Nylon/Neoprene | ||
| Frame Color | Green, Orange, Purple or White Powder Coat | ||
| Lifting Mechanism | Gas Spring Lift | ||
| Kneepad (inside access of pad) | 3.5″Wx5″H | 9x13cm | |
| Footplate Size | 9 3/4″Lx4″W | 25x10cm | |
| Planar Seat Size | 8″-13″Wx13.5″D | 20-33x34cm | |
| Planar Back Pad Size | 8″-12″Wx10″H | 20-31x25cm |
Shadow Tray
| Shadow Tray Size | 21″x24″ | 53x61cm | |
| Shadow Tray Height (from seat) | 7″-10″ | 18-25cm | |
| Weight of Black Molded Shadow Tray Assembly (add 3lbs or 1.4kg for Acrylic) | 11.7lbs | 5.3kg | |
| Chest Pad Depth Range | 0″-11″ | 0-28cm |
Mobile
| Mobile Footprint | 24″x38″ | 61x97cm | |
| Mobile Handrim Height (from seat pivot) | 12.75″ | 32cm | |
| Mobile Handrim Height (from floor) | 31″ | 79cm | |
| Mobile Handrim Height-Tall (from seat pivot) | 16.75″ | 43cm | |
| Mobile Handrim Height-Tall (from floor) | 35″ | 89cm | |
| Mobile Wheelbase | 31″ | 79cm | |
| Mobile Fore/Aft Handrim Positional Range (from seat pivot) | 4.75″-19″ | 12-48cm | |
| Standard Bantam w/ Mobile Weight | 70lbs | 32kg | |
| Weight of Mobile Option | 25lbs | 11kg | |
| Mobile Drive Chain Tensioning Method | Tension Jack-Screw | ||
| Mobile Wheel Locks | 1/4 turn rotation to lock/unlock | ||
| Mobile Threshold Height | .75″ Maximum | 2cm Maximum |
Options
| Frame Footprint – Swivel Casters | 30″x38″ | 76x97cm | |
| Lifting Mechanism | Manual Hydraulic Lift | ||
| Lifting Mechanism | Pow’r Up Lift | ||
| Supine Positioning | 0-90° | ||
| T-Style Handle-Extends (each direction) | 7″ | 18cm | |
| Foot Straps – Range Over Arch | 2″-9″ | 5-23cm | |
| Multi-Adjustable Footplates Plantar/Dorsi | +/- 20° | ||
| Kneepad Height Range | +/- 1″ | +/- 2.5cm | |
| Multi-Adjustable Footplates Fore/Aft | +/- 3/4″ | +/- 1.9cm | |
| Multi-Adjustable Footplates Rotation | 30° left/right | ||
| Multi-Adjustable Kneepads Width Range | 5.5″-10″ | 14-25cm | |
| Hip Support Pad Size | 3.5″Wx3.5″H | 9x9cm | |
| Hip Supports Width Range | 8″-12″ | 20-30cm | |
| Hip Supports Height Range | 2″ (3 positions) | 5cm | |
| Lateral Support Pad Size | 4″Wx6″H | 10x15cm | |
| Lateral Supports Width Range | 8″-12″ | 20-30cm | |
| Contoured Seat Size | 11-13″Wx14″L | 28-33x36cm | |
| Contoured Back Pad Size | 15″Wx8″H | 38x20cm | |
| Chest Vest | 11″Lx9.5″W | 28x24cm | |
| Head Support Height Range (from seat, small planar only) | 17″-24″ | 43-61cm | |
| Head Support Height Range (all extra small and small contour) | 15″-24″ | 38-61cm | |
| Head Support Depth Range (from backrest) | +1″ to -2.75″ | +3 to -7cm | |
| Positioning Belt – Hip Circumference | 0-29″ | 0-74cm | |
| Swing-Away Front End Tray Height Range | 9.25 to 21.25″ | 23 to 54 cm | |
| Swing-Away Front End Tray Fore/Aft Range (from seat pivot) | +10 to -11 | +26 to -28 cm | |
| Locking Caster Diameter | 5″ | 13cm |
